Anson is an industry leader in laser cutting machine plotters and laser automatic contour plotters.

Anson is an industry leader in laser cutting machine plotters and laser automatic contour plotters.

Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 1
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 2
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 3
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 4
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 5
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 6
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 1
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 2
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 3
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 4
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 5
Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine 6

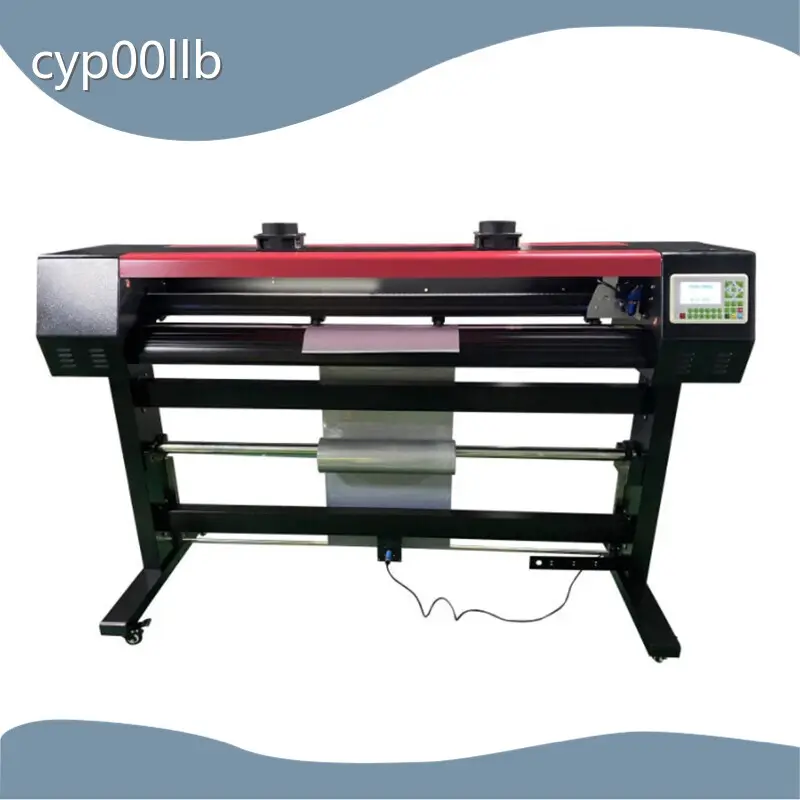

Laser Vinyl Cutting Machine Designed by HAOKE Brand Laser Vinyl Cutting Machine

Driving Motor:
Stepper motor
PC Interface:
RS232 serial port or USB
Laser Head:
Designed by HAOKE
Laser Mode:
Hollow, engraving, cutting, drawing
Power Supply:
AC220V/110V +/- 5%, 50HZ-60HZ
Inquiry
Send your inquiry

Product Display

Pro5-1
Pro5-1
Pro5-3
Pro5-3
Pro5-4
Pro5-4

Product parameters

Model no. HK-980 LASER  HK-1380 LASER  HK-1730 LASER
HK-980 LASER AUTO HK-1380 LASER AUTO HK-1730 LASER AUTO
HK-980 LASER PRO HK-1380 LASER PRO HK-1730 LASER PRO
HK-980 LASER CCD HK-1380 LASER CCD HK-1730 LASER CCD
Max Feeding Width 980mm 1380mm 1730mm
Max Cutting Width 820mm 1220mm 1570mm
Driving Motor stepper motor
PC Interface RS232 serial port or USB
Laser Head Designed by HAOKE
Laser Mode Hollow, engraving, cutting, drawing
Blade  Roland standard blade
Power Supply AC220V/110V +/- 5%, 50HZ-60HZ
Laser Tube Power 50W
Cutting Speed Min.10mm/S ~ Max. 800mm/S
Cutting Pressure  Min. 10g ~ Max. 500g(Knife mode)
Resolution 0.0254mm/step
Repeat Accuracy 0.0127mm
Language Format DM/PL compatible
Baud Rate  38.4K
Data Transmission  8 data bits, 0 parity bit, 1 stop bit
Control Panel LCD display + key + switch + test + current regulation + current indication
Min Character Chinese character: 3mm; letter: 2mm; (varies depending on character font and media)
Laser Current Range  0-20mA
Interface Type Serial port/USB
Applicable Material  Soft and thin nonmetal material, such as paperboard, cutting vinyl
Applicable Range Currently, this machine has been widely used for apparel, label, outdoor signs, lamp-box, screen printing, car decoration, etc.
Floor Stand Yes Yes Yes
Machine Size 1420mm*700mm*1060mm 1820mm*700mm*1060mm 2170mm*700mm*1060mm
Packing Size 1570mm*535mm*490mm 1950mm*490mm*450mm 2300mm*490mm*450mm
GW 70kg 85kg 100kg

Product Advantage

Pro5-xj2

Accurate and fast cutting height

Our laser plotter for garment film is precisely designed to cut 1mm fabric films with a 50W laser power system. The high-powered laser ensures highly accurate and fast cutting of any garment films, making it the perfect choice for all your fabric cutting needs.

Able to achieve perfect design and effects

Laser plotters are ideal for mini character cutting on thin vinyl due to their precision and accuracy. Tiny details can be easily and accurately cut on incredibly thin vinyl, allowing for perfect designs and results every time.

Laser plotters use a focused beam of light to cut through t-shirt films with extreme precision, creating eye-catching designs that stand out above the rest. With the versatility to cut through different vinyl /film and the speed to produce unique pieces quickly, laser plotters are the ideal tool for creating custom garments.

Pro5-xj1
Pro5-xj3

Product features

Speed up production quickly with this plotter.

High-powered 50W laser

Fabric Film Cutting plotter

Streamline garment manufacturing.

Faqs

1
Q: Are you trading company or factory?
A: We are trading company with our own factory.
2
Q: How long is your delivery time?
A: It is according to your quantity. if you just want to buy one set sample .it needs 1-3 working days .if the goods are in stock. or it is 4-5days if the goods are not in stock.
3
Q: Do you provide free sample ?
A: No, we could offer the sample but you should pay the cost of freight/sample.
4
Q: How about the shipping mode?
A: by express/air/sea/train both ok.as per the buyer request to delivery. you know the machine freight charge is higher. in general , we just suggest the buyer can accpet the sea shipment.
5
Q: How about the freight?
A: You can find the forwarder agent by yourself ,if you have not, we can quote the cheaper freight charge for you.
6
Q: How to order?
A: You can contact with us by email or calling us, we can make the PI to you.
7
Q: What is your terms of payment ?
A: Payment<=$30000, 100% in advance. Payment>=$30000, 50% T/T in advance ,balance before shipping. If you have another question, pls contact us .


Company Advantages

· While manufacturing the laser vinyl cutting machine, we make use of superior grade raw materials.

· Equipped with superior lamp beads, laser vinyl cutting machine is soft in light, high in luminous efficiency and excellent in color reproduction. It is free from stroboscopic effect and is harmless to the human eyes.

· One of the biggest points of this product is that it reduces the weight of the food by heavily removing the water content, which enables the food to be transported or stored only taking up a small space.


Company Features

· has been committed to the R&D and production of laser vinyl cutting machine since its inception.

· Our company has excellent management. They are able to build a positive, engaging work environment where all teams create strong relationships with one another and with clients.

· Our consistent pursuit is to provide each customer with high-quality laser vinyl cutting machine.


Application of the Product

laser vinyl cutting machine can be widely used in various fields.

With rich manufacturing experience and strong production capability, is able to provide professional solutions according to customers' actual needs.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
