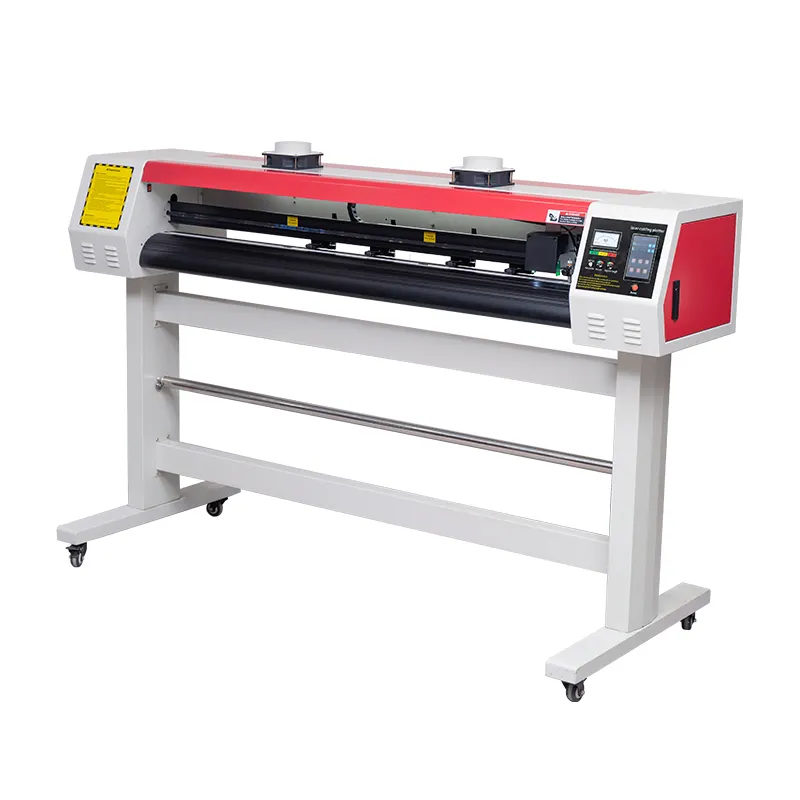

Vinyl Cutter Brand 50W Designed by HAOKE Roland Standard Blade Manufacture
Product details of the vinyl cutter
Product Information
vinyl cutter is produced in a standard production environment. An optimal system is established in order to satisfy customer demands 100%. With so many economic benefits, the product enjoys a bright prospect on the market.
Product Display
Product parameters

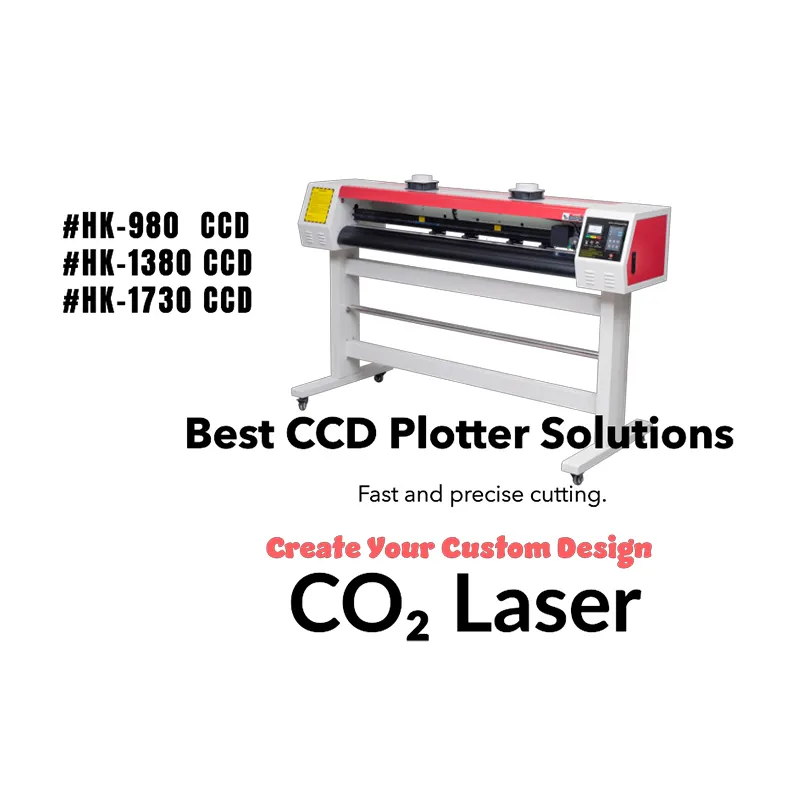

| Model no. | HK-980 LASER | HK-1380 LASER | HK-1730 LASER |
| HK-980 LASER AUTO | HK-1380 LASER AUTO | HK-1730 LASER AUTO | |
| HK-980 LASER PRO | HK-1380 LASER PRO | HK-1730 LASER PRO | |
| HK-980 LASER CCD | HK-1380 LASER CCD | HK-1730 LASER CCD | |
| Max Feeding Width | 980mm | 1380mm | 1730mm |
| Max Cutting Width | 820mm | 1220mm | 1570mm |
| Driving Motor | stepper motor | ||
| PC Interface | RS232 serial port or USB | ||
| Laser Head | Designed by HAOKE | ||
| Laser Mode | Hollow, engraving, cutting, drawing | ||
| Blade | Roland standard blade | ||
| Power Supply | AC220V/110V +/- 5%, 50HZ-60HZ | ||
| Laser Tube Power | 50W | ||
| Cutting Speed | Min.10mm/S ~ Max. 800mm/S | ||
| Cutting Pressure | Min. 10g ~ Max. 500g（Knife mode） | ||
| Resolution | 0.0254mm/step | ||
| Repeat Accuracy | 0.0127mm | ||
| Language Format | DM/PL compatible | ||
| Baud Rate | 38.4K | ||
| Data Transmission | 8 data bits, 0 parity bit, 1 stop bit | ||
| Control Panel | LCD display + key + switch + test + current regulation + current indication | ||
| Min Character | Chinese character: 3mm; letter: 2mm; (varies depending on character font and media) | ||
| Laser Current Range | 0-20mA | ||
| Interface Type | Serial port/USB | ||
| Applicable Material | Soft and thin nonmetal material, such as paperboard, cutting vinyl | ||
| Applicable Range | Currently, this machine has been widely used for apparel, label, outdoor signs, lamp-box, screen printing, car decoration, etc. | ||
| Floor Stand | Yes | Yes | Yes |
| Machine Size | 1420mm*700mm*1060mm | 1820mm*700mm*1060mm | 2170mm*700mm*1060mm |
| Packing Size | 1570mm*535mm*490mm | 1950mm*490mm*450mm | 2300mm*490mm*450mm |
| GW | 70kg | 85kg | 100kg |
Product Advantage
Powerful automated manufacturing tools
Our laser cutting plotter is a powerful automated manufacturing tool for quickly and accurately completing cutting routines. Utilizing laser technology, it is able to achieve unparalleled precision and performance. With high-speed and continuous operation, even complex designs can be crafted with ease. Perfect for high-volume production and ambitious one-off projects alike.
Extremely high accuracy
Laser cutting is a precise and efficient way to cut through a material with extreme accuracy. Laser cutting uses a beam of light to heat and melt the edges of the material, while blade cutting uses a physical blade to cut through the material. Laser cutting is faster than blade cutting, and allows for more intricate and intricate designs. The accuracy achieved with laser cutting is incomparable, making it perfect for projects that require precise and precise cuts with tight tolerances.
CO₂ laser cutting offers a safe, accurate and affordable way to cut materials. It provides superior cutting results compared to other methods, such as a blade, and is suitable for use on a wide variety of materials. CO₂ laser cutting is an excellent choice for quick, precise cuts.
Custom design
Cut vinyl stickers help you to create eye-catching custom designs for shopfronts, car/bike decals, and home decor. Create your own vibrant and colorful designs for indoor and outdoor surfaces without the expense of professional vinyl printing.
Product application
